Size (Inch / cm) 23.8"/ 60.47cm
Panel Type IPS
Colour Gamut (CIE1976) 72%
Colour Depth (Num of Colours) 16.7 M
Pixel Pitch (mm)
0.2745 x 0.2745
Aspect Ratio 16:9
Resolution 1920 x 1080
Brightness (Typ.)250 cd/m2 (Typ)
200 cd/m2 (Min)
1000:1 (Typ)
5ms (High)
Viewing Angle (CR≥10)
178 / 178 (CR≥10)
Surface Treatment
Anti glare ,3H

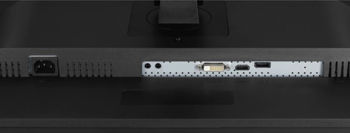

JACK INPUT/OUTPUT
D-Sub Yes
DVI Yes
DisplayPort Yes(1.2)
HDMI Yes (1.4)
Jack Location (Signal Input)
Vertical
Headphone Out
Yes
Jack Location (Audio Output)
Vertical
USB
USB 2.0 (1 up 2 down)
SPEAKER
Type
2ch stereo
Audio output (watt)
1.2W x 2
POWER
Type
Built-in
Input
100~240V (50/60Hz)
Output
28W
Normal On (EPA)
17.1W
Normal On (typ.)
23.6W
Sleep Mode (Max)
0.5W
DC Off (Max)
0.3W
Energy Efficiency Class (A - G)
E
FREQUENCY
D-sub (H-Frequency)
30~83kHz
D-sub (V-Frequency)
56~75Hz
DVI-D (H-Frequency)
30~83kHz
DVI-D (V-Frequency)
56~75Hz
HDMI (H-Frequency)
30~83kHz
HDMI (V-Frequency)
PC: 56~75Hz, AV: 50~61Hz
DisplayPort (H-Frequency)
30~83kHz
DisplayPort (V-Frequency)
56~75Hz
RESOLUTION
D-Sub
1920 x 1080
DVI-D
1920 x 1080
DisplayPort
1920 x 1080
HDMI
1920 x 1080
CONTROL KEY
Key Number
7
Key Description
MENU, ◀, ▶, OK/INPUT, ▼, ▲, POWER
Key Type
Tact
LED Colour (On mode)
White
LED Colour (Power save mode)
LED off
[ Key Location ]
Front
OSD
Languange(Country)
English, German, French, Spanish, Italian, Swedish, Finnish, Portuguese, Polish, Russian, Greek, Chinese, Japanese, Korean, Ukrainian, Portuguese (Brazil), Hindi, Tranditional Chinese
Number of Language
18
DIMENSION(W*D*H, MM)
Set (with Stand)
553.8 x 240 x 382.9
Set (without Stand)
553.8 x 58.4 x 333.1
Box
627 x 505 x 178
Wall Mount size (mm)
100 x 100 (Wall mount)
WEIGHT(KG)
Set (with Stand)
5.7
Set (without Stand)
3.6
Box
7.9
